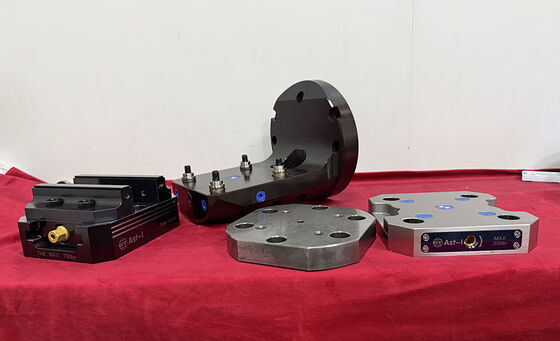

Reverse Clamping Range 78-254mm Pneumatic Clamping Fixture
Engineered for fast cycle times and secure workpiece clamping in demanding manufacturing environments.
Product Overview
The 5 Axis Vise is a highly versatile and precision-engineered CNC fixture designed to enhance the efficiency and accuracy of machining operations. This self-centering vise offers exceptional performance for a wide range of applications, making it an indispensable tool in any advanced manufacturing setup.
Key Features
- Product Name: 5 Axis Vise
- Jaw Width: 75mm for secure clamping
- Pneumatic operation for efficient 5-axis clamping
- Jaw Opening: 130mm to accommodate various workpiece sizes
- Maximum Torque: 75Nm ensuring strong hold during machining
- Durable powder-coated finish for long-lasting performance
- Ideal as a chuck and CNC fixture for precision machining tasks
Technical Specifications
| Brand |
AST |
| Model Number |
SK96-S178 |
| Jaw Opening |
130mm |
| Jaw Width |
75mm |
| Maximum Torque |
75Nm |
| Mounting Type |
T-slot |
| Operation |
Pneumatic |
| Finish |
Powder-coated black |
| Country of Origin |
China |
Applications
The AST SK96-S178 5 Axis Vise is engineered for precision machining and versatile clamping applications. Featuring a robust pneumatic mechanism that ensures efficient and reliable 5-axis clamping, this vise is ideal for complex manufacturing environments where accuracy and repeatability are paramount.
This self-centering vise is widely used in aerospace, automotive, mold making, and precision engineering industries. It excels in situations requiring multi-axis machining, such as 5-axis simultaneous milling, drilling, and tapping operations.
Technical Support & Services
Our comprehensive support includes installation guidance, maintenance tips, troubleshooting, and repair services. We provide detailed product manuals, instructional videos, and regular updates on product enhancements and accessories.
Maintenance services include routine inspections, cleaning recommendations, and calibration support to ensure optimal performance and reliability.
Packaging & Shipping
Each 5 Axis Vise is securely packaged using high-quality, durable materials. Units are wrapped in anti-rust paper and foam padding, then placed in reinforced cardboard boxes with additional cushioning for maximum protection during transit.
We offer reliable shipping options via trusted carriers with tracking information provided. Insurance options are available for added security during transport.
Frequently Asked Questions
What is the brand and model number of this 5 Axis Vise?
The 5 Axis Vise is manufactured by AST and the model number is SK96-S178.
Where is the AST 5 Axis Vise made?
This 5 Axis Vise is made in China.
What applications is the AST SK96-S178 5 Axis Vise suitable for?
The AST SK96-S178 5 Axis Vise is ideal for precision machining tasks involving multi-axis CNC machines, providing secure clamping for complex workpieces.
Can the 5 Axis Vise be used on all 5-axis CNC machines?
Yes, the AST SK96-S178 is designed to be compatible with most 5-axis CNC machines, but it is recommended to check the specific machine's mounting requirements.
What materials can be clamped using the AST 5 Axis Vise?
The vise can securely clamp a variety of materials including metals, plastics, and composites, making it versatile for different machining operations.
